Westy / Vanagon Wheel Painting. 87 Factory Alloys.

Time 4 days.  Results, ok.  Not going to win any shows, but they do look better.  Click on any picture to enlarge it.

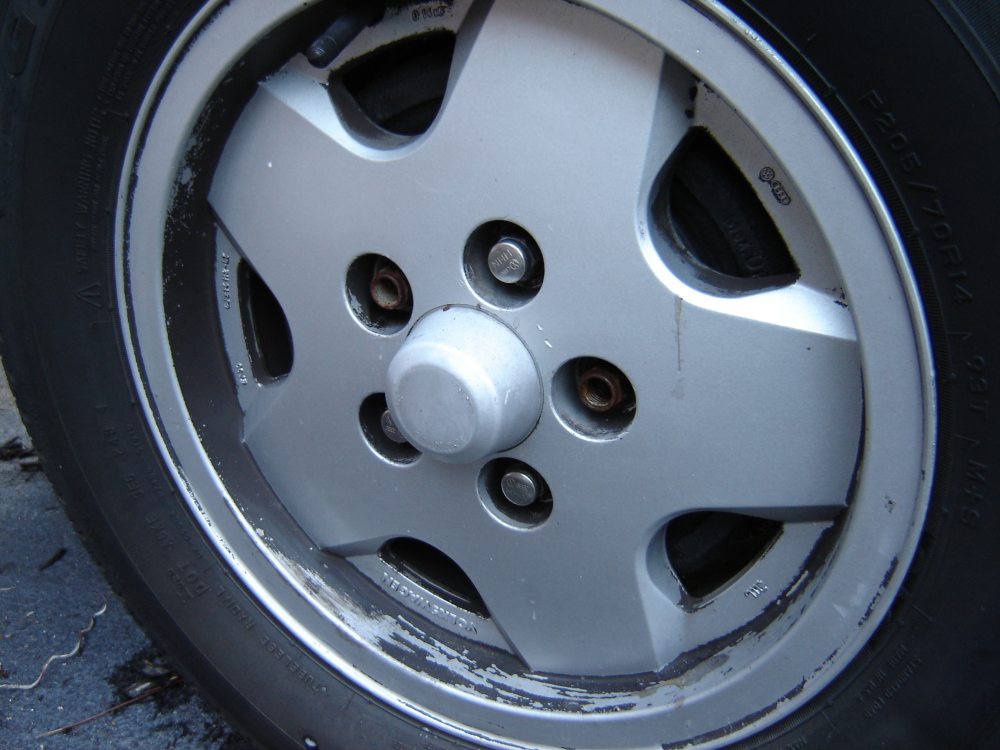

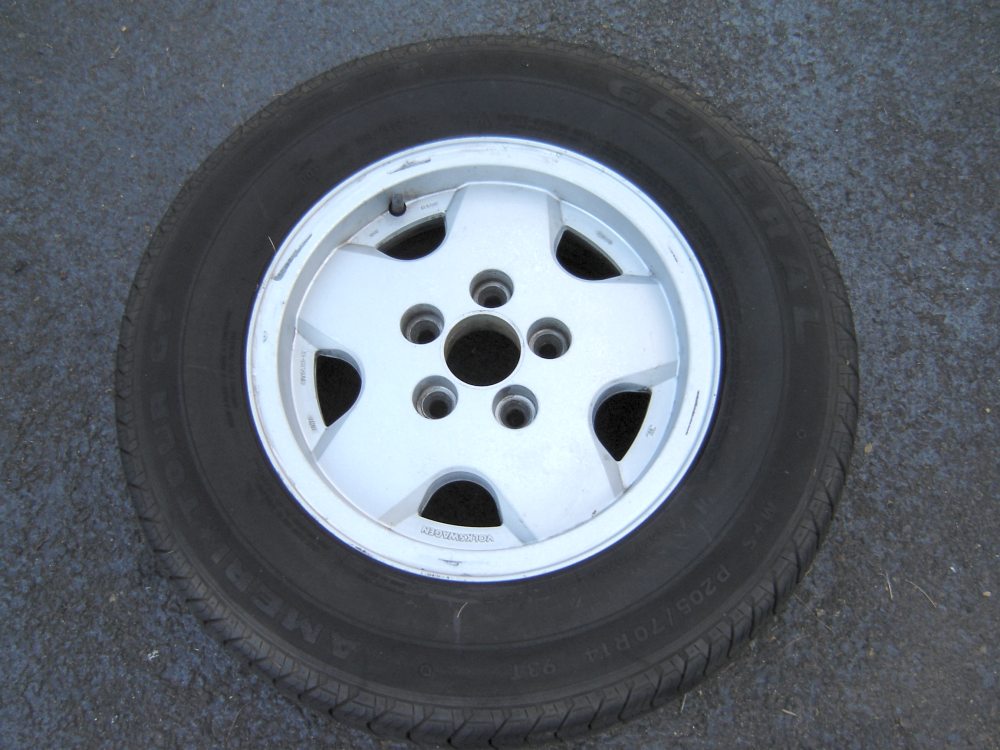

Starting point.  Baked on brake dust.  Curb Rash.  Wrong tires.


Washed with Acetone and a green ScotchBrite pad.  Then hit with a 409 type spray cleaner. Demounted tire, cleaned curb rash with file and Dremel-Moto tool and wire brush.  Re-wiped with Acetone.

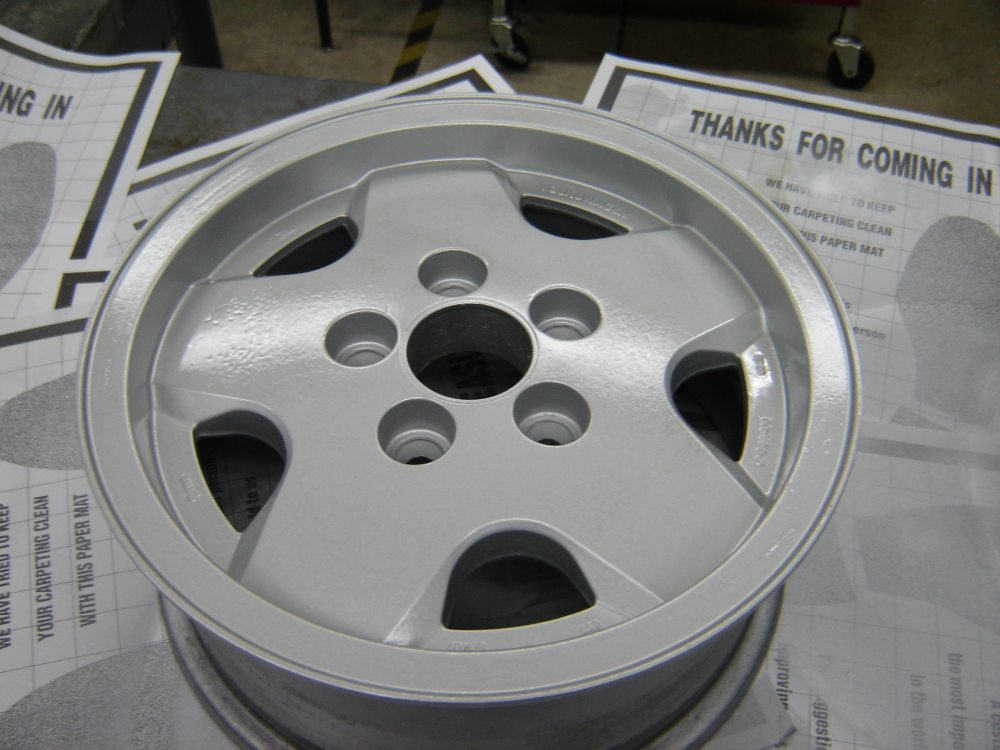

3 layers of caliper paint, 2 layers of clear coat.  I should have used a tack rag, and waited longer before spraying the clear.  I got a slight "Craze" effect from the clear.  Plus a few fish eyes.  But this is the first wheel I ever painted.  I waited 2 days to mount them so the clear could harden up.  Be sure to also paint the back side of the wheel where the openings are.

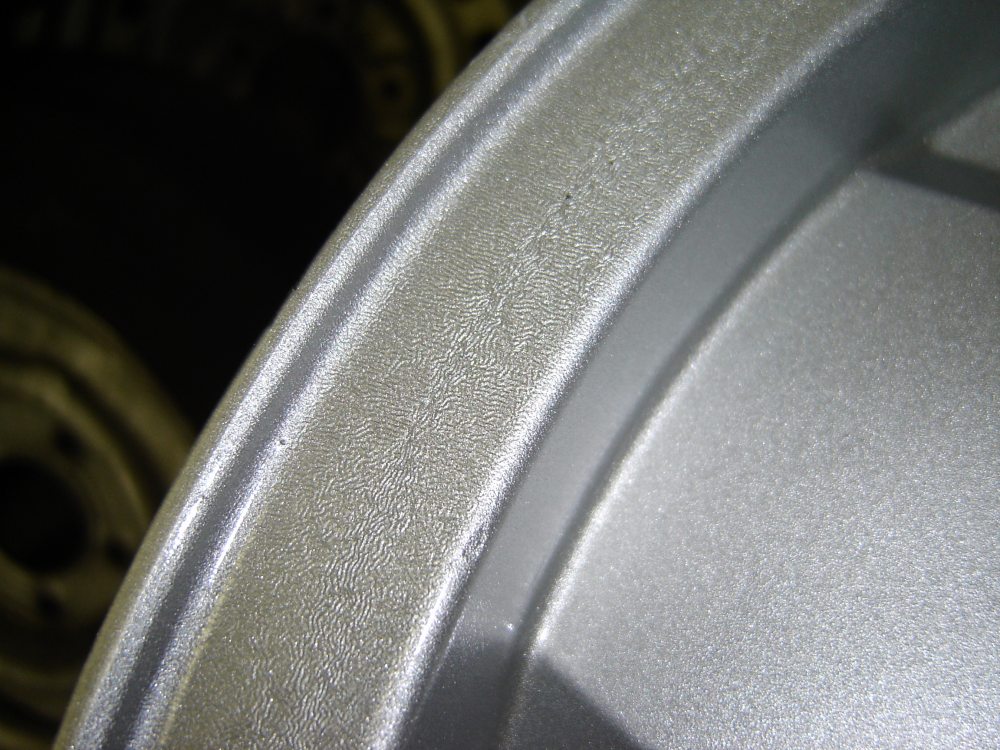

Close up.  You can see the imperfections.  Argh!

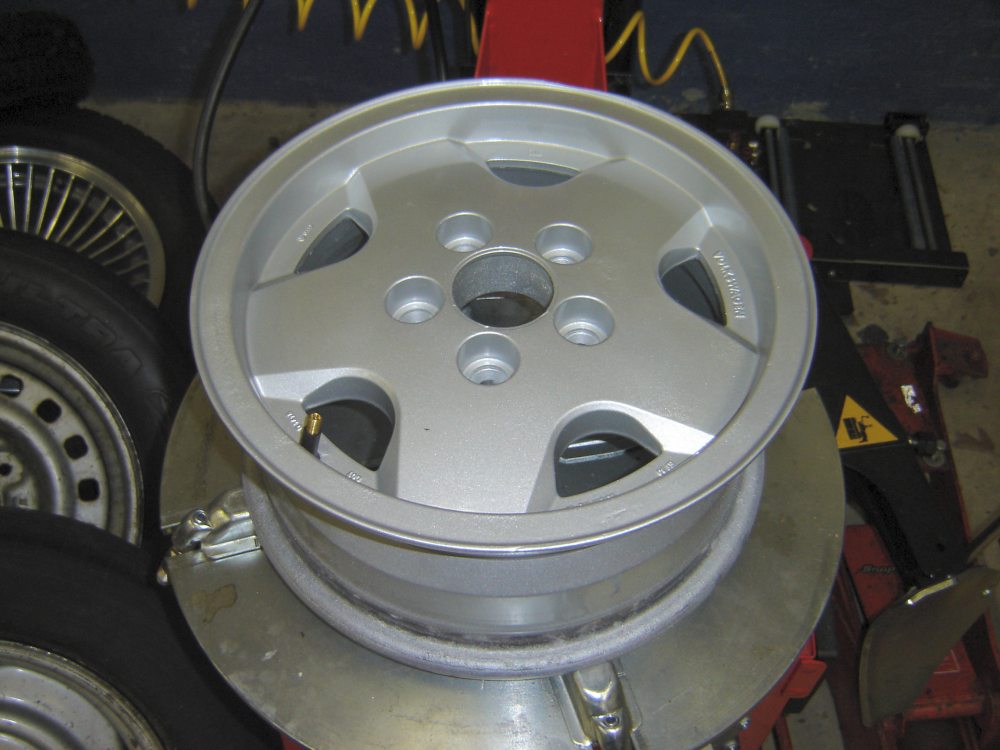

Mounted on the rim-clamp machine

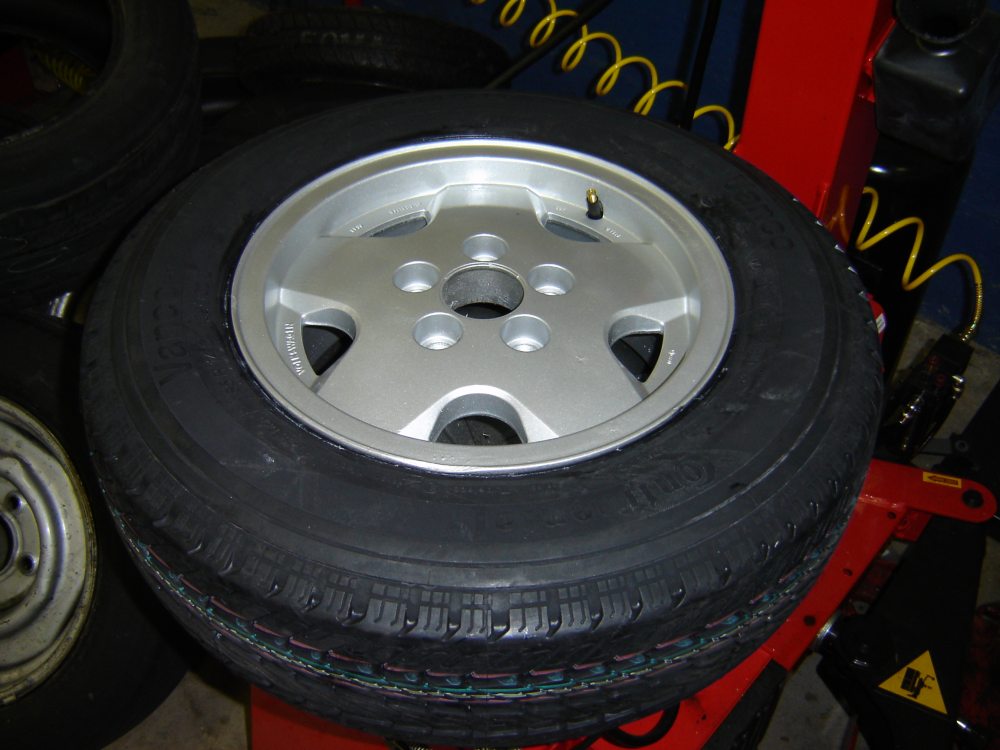

Looks pretty good.

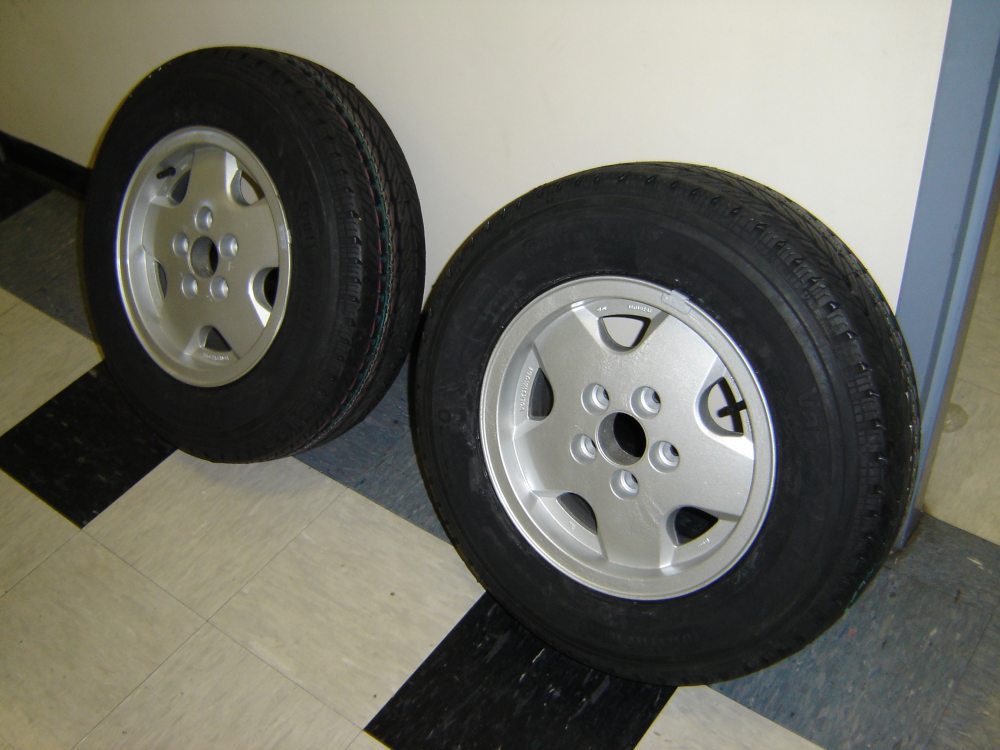

Finished pair for this week.  Messed up 1 wheel center a little when setting them on the tire balancer.  ARGH!!!

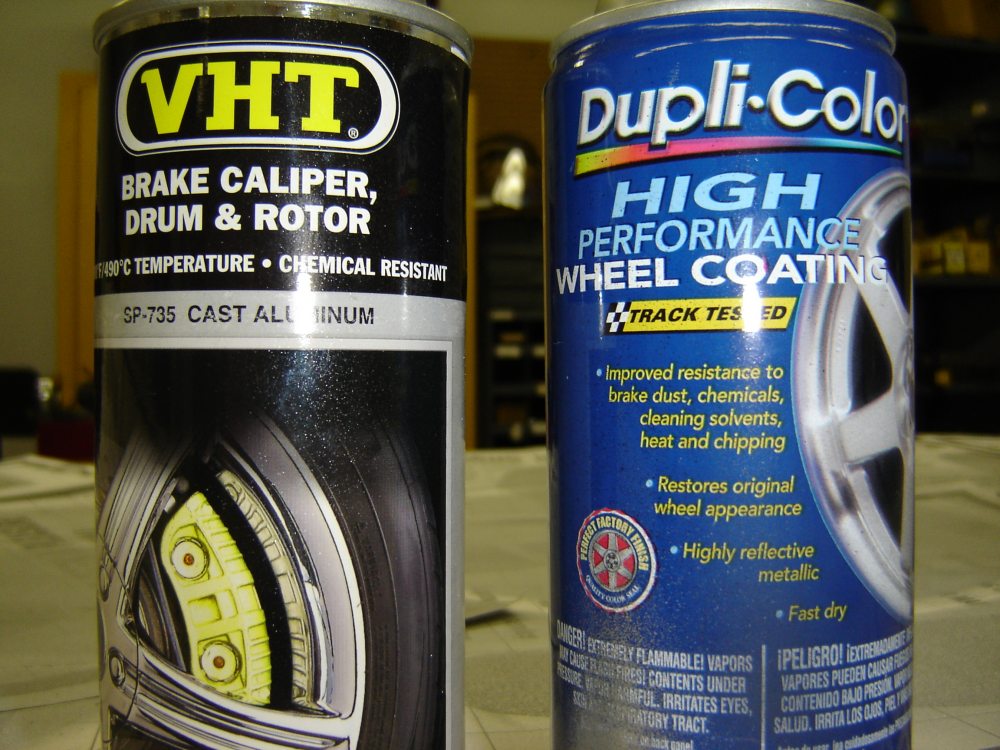

Oh.  This is the stuff I used.
