87 Vanagon Schematics - Wiring Diagrams

I found these online at one point, I saved them, and I am reposting them here.

I like them since they are a better view then what is in the Bentley Manual, and show a greater overview of some systems.

All files are in .GIF format.

Engine, Computer, Fuel Injection, Alternator and Starter

Cooling Fan W/ AC

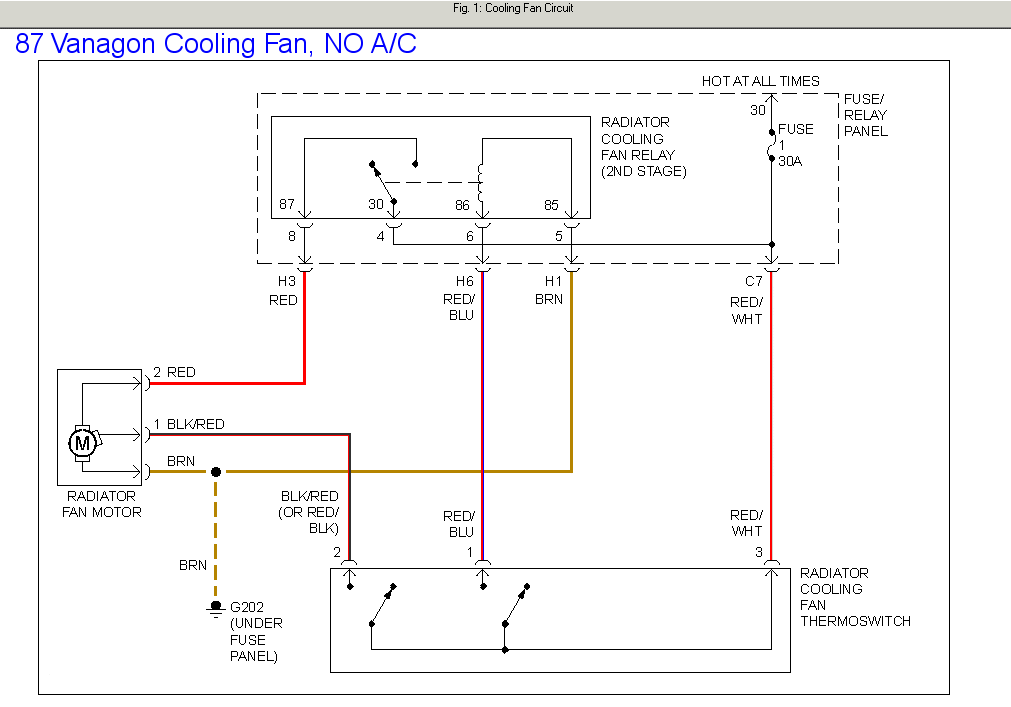

Cooling Fan W/O AC


Alternator, Charging System

Fuse Panel, Relays, Power Door Locks, and Power Mirrors, Instruments and LEDs

Flashers, Wiper, Heater, Fuse Panel

Auto Trans, IGN Switch, Cruse Control


Radio (W/O Amplifier)

Wiper Washer
