How to Access your FuseBox.

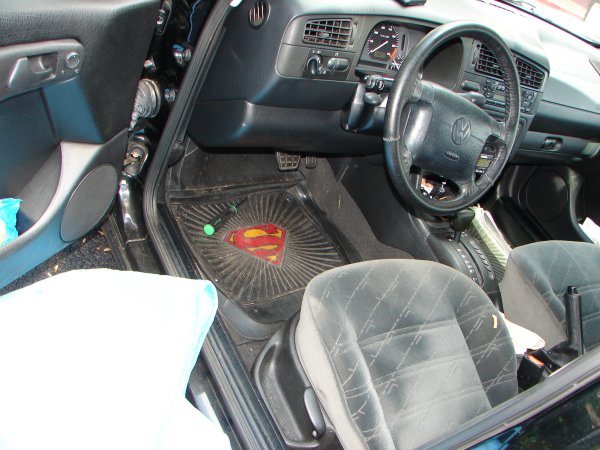

Open Drivers Door, ignore silly Superman Floormat.

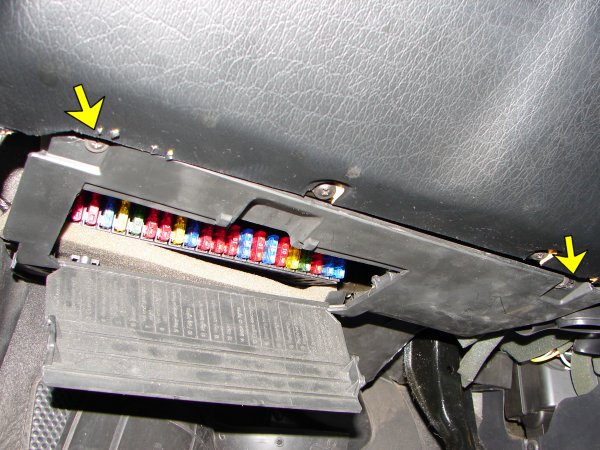

Pop open fuse door, remove two screws with yellow arrows.  Once screws are out, pull entire lower fuse cover/panel towards yourself.

You will see a small clip where it attaches to put it back (on the firewall).

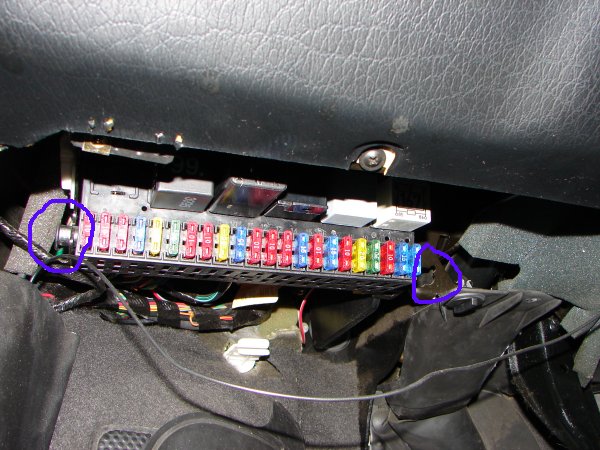

On either side of the fuse box, there are two gray clips.  These hold the box in place.

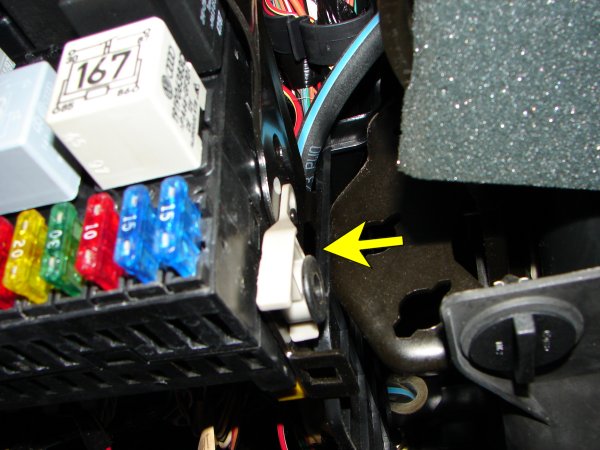

Clip shown with arrow.

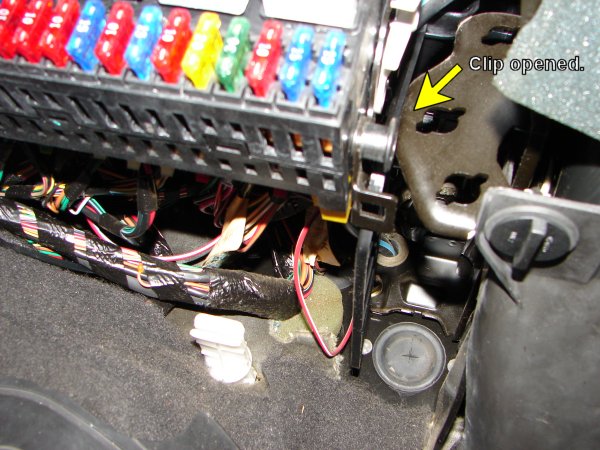

Swing clip up.. raise box 1/2" and then slide it foreword and out.  Be ready to see a rats nest of wires.  This explains a lot about VWs and electrical issues!

View fuses and relays, note hidden fuse location on later cars...
