 Unless
you try it, don't tell me it can't work, cuz it does... |
«
» 3:08 AM 2-28-2006 |
  |
|
Given the "cutting shifter" posts and all that, I
felt I had to take some type of leap.

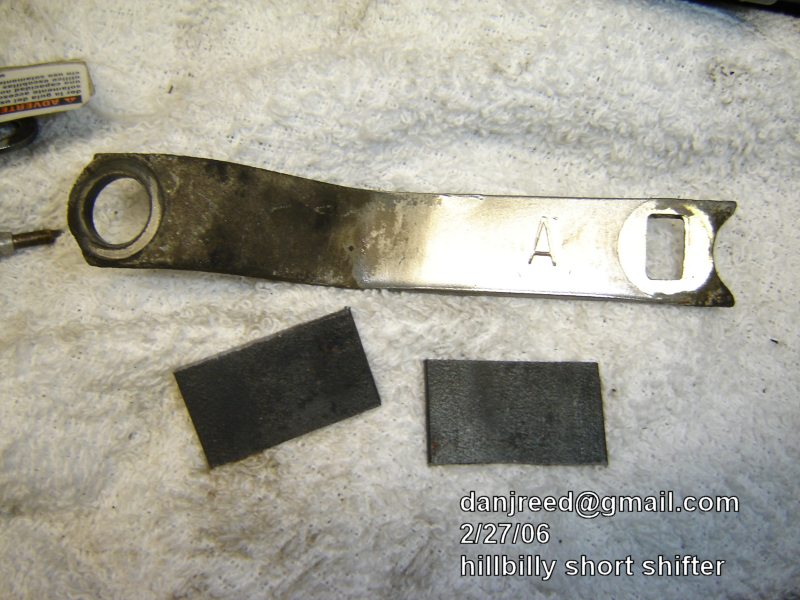

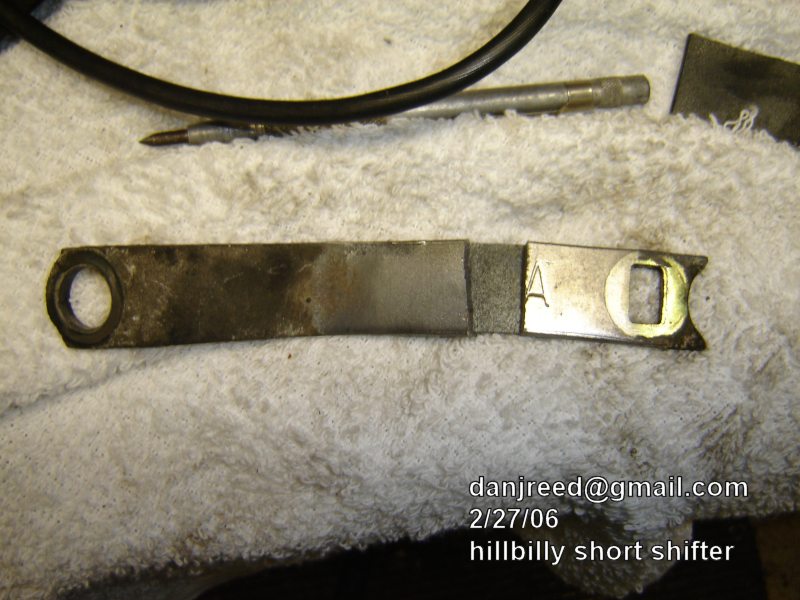

Take 1 stock shifter lever. And two chunks of metal, same thickness,
about 1.5" long each
(No, I don't measure... Did this all by eye... rulers are no fun..)

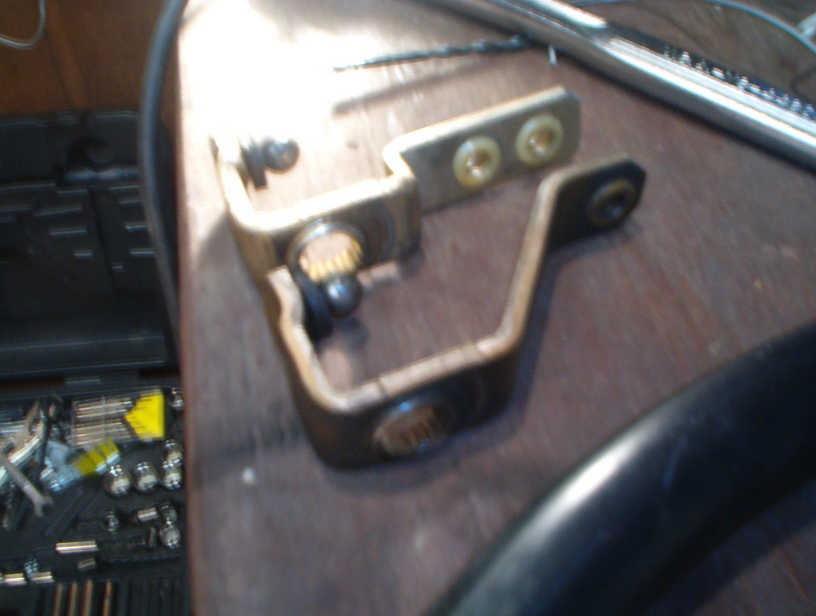

Chop that chunk about somewhere in the middle.

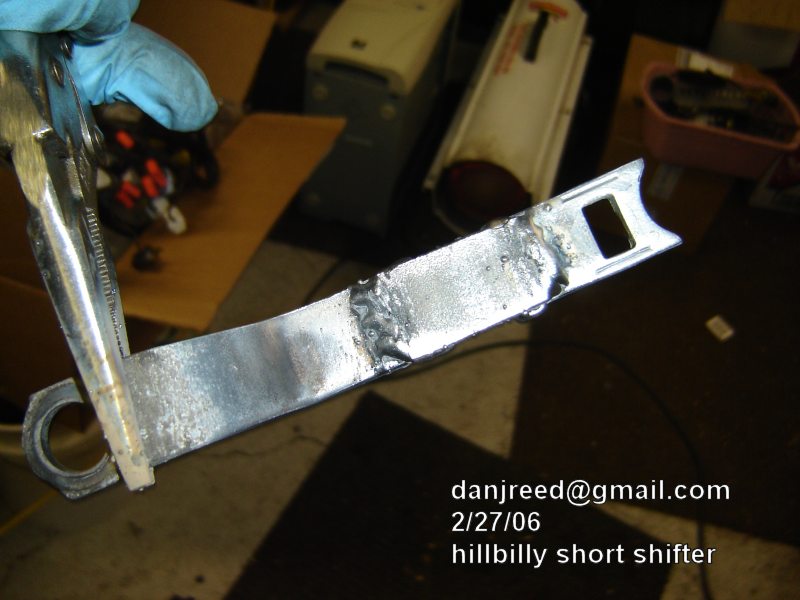

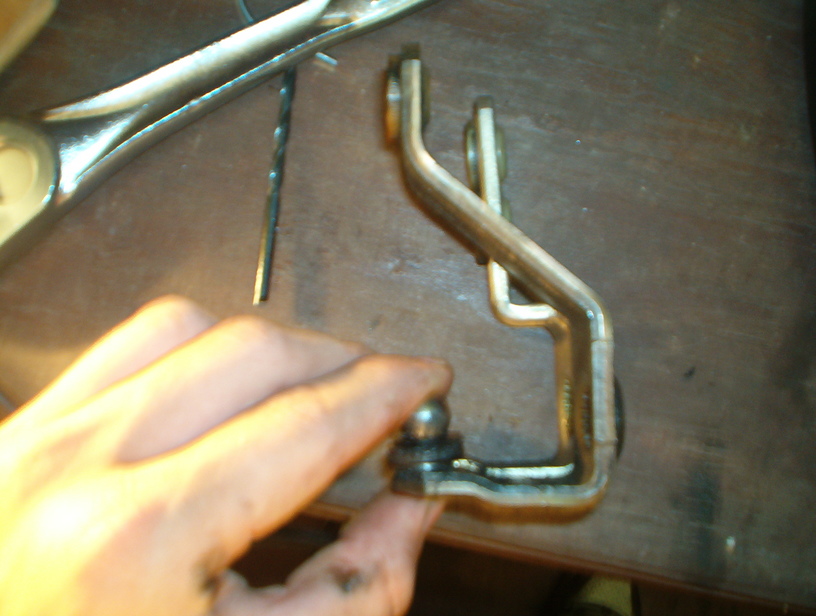

Weld the two plates to it about 1/2" or 5/8" longer or so... again,
no ruler..

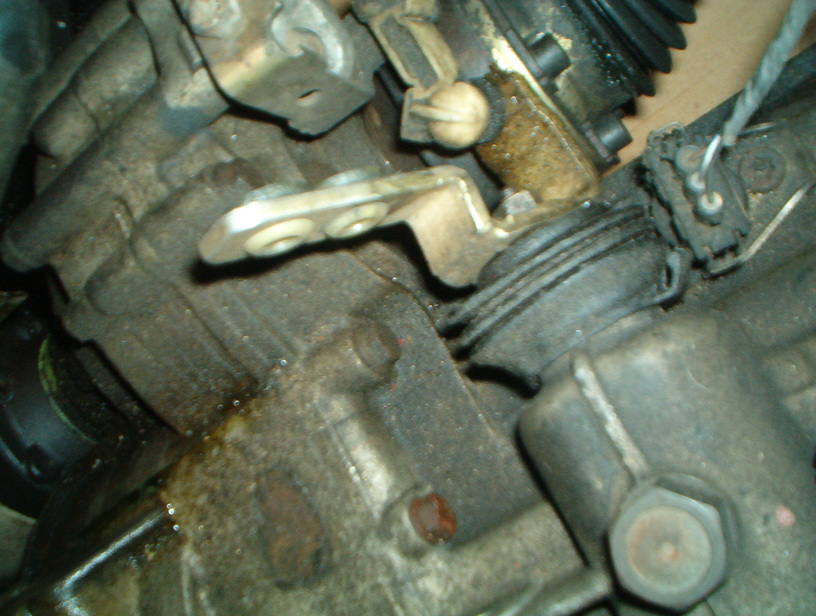

Install that chunk o ugly weld into your 020 trans... and..
Yup, its a real short shifter folks. My shift throw went from 5.6" at
the top of the shifter, down to 4"...
Does not, and cannot "hit shift linkage" or "harm syncros..".. I have
a cut away trans if you don't think so...
95' Golf Sport "Schneesturm", 87' Westy Vanagon "Schultz" - 98' Jetta
GLS "Wife's Car"
BUY MY $60 14" (4) WINTER BEATER TIRES! -
BUY MY OEM MUD FLAPS! -
CHEAP OEM MKIII REMOTES!
|
OnelowcabriO
Member
Offline
Member Since
4-30-2002
9302 posts
Weedsport NY
purple girly car
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 3:09 AM 2-28-2006 |
|
|
nice gloves
no matter what you have, there is someone on the vortex who doesnt like
it.
F.W.G-dubbin
buffets, beers and beds
|
Dan J Reed
Member
Offline
Member Since
7-26-2004
8990 posts
Stinkville NJ
95 Golf Sport, 1987 VW Vanagon, 98 Jetta GLS
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (OnelowcabriO) » |
«
» 3:10 AM 2-28-2006 |
|
|
Thanks, they keep my hands pretty.
95' Golf Sport "Schneesturm", 87' Westy Vanagon "Schultz" - 98' Jetta
GLS "Wife's Car"
BUY MY $60 14" (4) WINTER BEATER TIRES! -
BUY MY OEM MUD FLAPS! -
CHEAP OEM MKIII REMOTES!
|
Franco...
Member
Offline
Member Since
6-18-2004
7021 posts
out of the gay
and in da Valley...CT
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 3:12 AM 2-28-2006 |
|
|
i love hillbilly stuff.
autocratica
1 thirty pack at a time
|
Mr Kai
Member
Offline
Member Since
9-10-2004
264 posts
Austin Texas
1996 VW Jetta GLX
|
|
» |
«
» 3:12 AM 2-28-2006 |
|
|
so how did you measure the shift throw?
-Kai
3 clutches and 1 tranny down
|
geoffsta99
Member
Offline
Member Since
12-1-2005
474 posts
Eastford ct
1998 VW Jetta K2
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 3:13 AM 2-28-2006 |
|
|
nice job it looks good
**1998 Jetta K2**
| Quote, originally posted by koonnn » |
| I just sold my $4000 98 Jetta for $12 grand |
"Burn rubber, not your soul"
|
Dan J Reed
Member
Offline
Member Since
7-26-2004
8990 posts
Stinkville NJ
95 Golf Sport, 1987 VW Vanagon, 98 Jetta GLS
|
|
Re:
(Mr Kai) » |
«
» 3:14 AM 2-28-2006 |
|
|
| Quote, originally posted by Mr Kai » |
| so how did you measure the shift throw? |

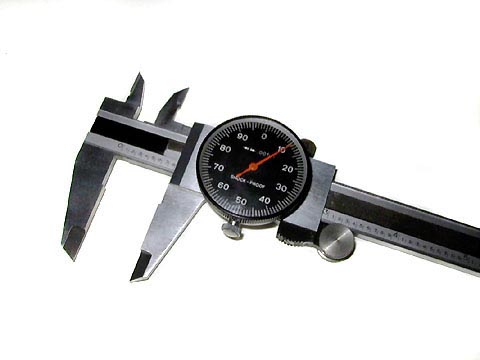

Well, I DID use a ruler for that.. well a dial caliper.
Measured in the car... at the top of the front of the shifter...
95' Golf Sport "Schneesturm", 87' Westy Vanagon "Schultz" - 98' Jetta
GLS "Wife's Car"
BUY MY $60 14" (4) WINTER BEATER TIRES! -
BUY MY OEM MUD FLAPS! -
CHEAP OEM MKIII REMOTES!
|
Banoonoo
Member
Online
Member Since
1-19-2005
1260 posts
Catonsville MD
Imola 20AE
|
|
» |
«
» 3:15 AM 2-28-2006 |
|
|
today i just found out i had a sachs
clutch!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Myspace
|
bosoxfan455
Member
Offline
Member Since
9-7-2005
1625 posts
Windham Ct
99 Jetta Wolfsburg
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 3:16 AM 2-28-2006 |
|
|
looks good, i would have done the same if i had a
decent welder and the confidence in my welds so i wasnt left stranded
somewhere. do you think it should be as square as possible though? i can
see problems with the gears not engaging properly because of this
maybe not i dont know for sure
Eastern CT GTG Mondays at RIBBITS
mk2 golf parts car fs
|
Dan J Reed
Member
Offline
Member Since
7-26-2004
8990 posts
Stinkville NJ
95 Golf Sport, 1987 VW Vanagon, 98 Jetta GLS
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(bosoxfan455) » |
«
» 3:18 AM 2-28-2006 |
|
|
Naa.. dude, there is sooooo much room to play
with this design... If the lever is straight, its gonna work. I just

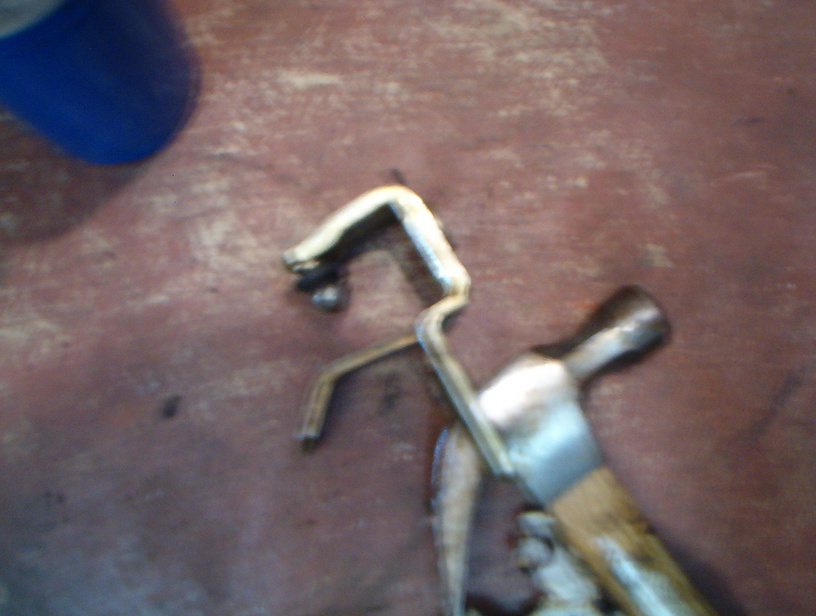

held it with vice grips when I welded it... 120V gasless mig deal.. All
this adjusts is the "front to back" throw, not side to side...
95' Golf Sport "Schneesturm", 87' Westy Vanagon "Schultz" - 98' Jetta
GLS "Wife's Car"
BUY MY $60 14" (4) WINTER BEATER TIRES! -
BUY MY OEM MUD FLAPS! -
CHEAP OEM MKIII REMOTES!
|
Neb
Member
Offline
Member Since
1-25-2005
1894 posts
Ottawa ON
1996 GTI 2.slow
|
|
Re:
(GotCandy) » |
«
» 3:18 AM 2-28-2006 |
|
|
| Quote, originally posted by GotCandy » |
| today i just found out i had a sachs
clutch!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! |
http://www.benpurkiss.com
Chuck Norris can eat a Rubix Cube and poop it out solved
|
ChinkyVdub
Member
Offline
Member Since
7-17-2003
1148 posts
NY
Mk3
|
|
Re:
(Neb) » |
«
» 3:20 AM 2-28-2006 |
|
|
i could have sold you my short shifter
wedding cruze:
http://forums.vwvortex.com/zerothread?id=2783950
Rockland g2g 8:30pm Wednesday nights @ Palisades Mall Commuter Lot
(across from Home Depot)
Buy my stuff!
http://forums.vwvortex.com/zerothread?id=2757071
http://forums.vwvortex.com/zerothread?id=2736858
http://forums.vwvortex.com/zerothread?id=2759199
|
-DOOMED-
Member
Offline
Member Since
9-6-2004
11310 posts
its just the internet, its not that serious....
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(bosoxfan455) » |
«
» 3:20 AM 2-28-2006 |
|
|
it wont work.
PX3 i went to h2o and all i got was a brokestatus cruise
sticker....
DER LOBSTER
Get your
bodywork done here
I need a right front sideskirt cap,pm me if ya got one you wanna sell
|
brobsrabbit
Member
Offline
Member Since
6-18-2005
7764 posts
Waterloo Iowa
1997 Black GTI VR6 (wOOt)
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(bosoxfan455) » |
«
» 3:23 AM 2-28-2006 |
|
|
you really should adjust it afterwards
I thought I found a sweet orange hair in my weed but it turned out to be
part of a Dorito.
http://cgi.ebay.com/ebaymotors...%3AIT
my head is like an unblocked drain,
my head is full of brains...
my arms are like two shipyard cranes,
that may not work again...
|
bosoxfan455
Member
Offline
Member Since
9-7-2005
1625 posts
Windham Ct
99 Jetta Wolfsburg
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 3:23 AM 2-28-2006 |
|
|
| Quote, originally posted by Dan J Reed » |
| Naa.. dude, there is sooooo much room to play with
this design... If the lever is straight, its gonna work. I just held
it with vice grips when I welded it... 120V gasless mig deal.. All
this adjusts is the "front to back" throw, not side to side... |
yeah thats true, i guess it doesnt have to be exact, either way it
looks good and you saved some cash. mass production and you could be
making millions
Eastern CT GTG Mondays at RIBBITS
mk2 golf parts car fs
|
Teufelhunde
Member
Offline
Member Since
1-12-2006
3727 posts
Ft Lauderdale FL
mk3
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(-DOOMED-) » |
«
» 3:24 AM 2-28-2006 |
|
|
R.I.P. My Brother, T.K. July 25, 1982--July 8, 2006
The good always die young.
XvwX--170 c.i.
|
reynolds9000
Member
Offline
Member Since
10-16-2003
12525 posts
Florence, AL
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Teufelhunde) » |
«
» 3:30 AM 2-28-2006 |
|
|
Sorry for being the layman, but what is different
about it aside from being cut and welded..
What, in the design, reduces the throw.
H20 Tuning:
Alabama's Premier Watercooled Club.
http://www.h2otuning.com
My choice is what I choose to do, and if I'm causing no harm, then
it shouldn't bother you.
Your choice is who you choose to be, and if you're causin' no harm, then
you're alright with me."
I
JDM
|
Ninja Boot
Member
Offline
Member Since
11-11-2002
3315 posts
Nashua NH
|
|
Re:
(GotCandy) » |
«
» 3:32 AM 2-28-2006 |
|
|
| Quote, originally posted by GotCandy » |
| today i just found out i had a sachs
clutch!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! |
DIY stuff is the way to go, nice job
Jon ||
RIP ElleDub
club.broke.status
WTB: Black GTI door cards, bose system, PM me!
Cabrio for sale
Artist formerly known as 97sequoiavrt
|
Cabrio1.8T
Member
Offline
Member Since
1-6-2003
4936 posts
Mobile Al
'74 Pimp Bay Bus!
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(reynolds9000) » |
«
» 3:43 AM 2-28-2006 |
|
|
I believe it is a leverage thing.A____^__B
2 ^ 1
A________ ^ __B
4 ^ 1
B is the shifter, A is the lever on the tranny.
It takes the first one twice the length to push the other side the same
distance. I think
1974 bay window bus
aebsds*SMASH*pwrttoemvw
| Quote, originally posted by Scarab_Beetle » |
| my rule of thumb: don't install a part, until you
fully understand what it does, how it works, and what could go wrong
because of it... |
|
-DOOMED-
Member
Offline
Member Since
9-6-2004
11310 posts
its just the internet, its not that serious....
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (brobsrabbit) » |
«
» 3:43 AM 2-28-2006 |
|
|
| Quote, originally posted by brobsrabbit » |
| you really should adjust it afterwards
|
Dan knows what hes doing man
PX3 i went to h2o and all i got was a brokestatus cruise
sticker....
DER LOBSTER
Get your
bodywork done here
I need a right front sideskirt cap,pm me if ya got one you wanna sell
|
ILL_VW
Member
Offline
Member Since
10-27-2004
704 posts
e. northport ny
94 vw golf workin on a built 2.1L to turbo
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(-DOOMED-) » |
«
» 3:49 AM 2-28-2006 |
|
|
seems like a good idea cuz other short shift
decrease the leverage and make it harder to shift while urs actually
makes it easier to shift. Youd think some company would have though of
that before.
FükenDübin : LI, NY
|
yeayeayea
Member
Offline
Member Since
5-28-2005
4156 posts
Lusby/College Park MD
1989 Gti 16v
|
|
» |
«
» 3:54 AM 2-28-2006 |
|
|

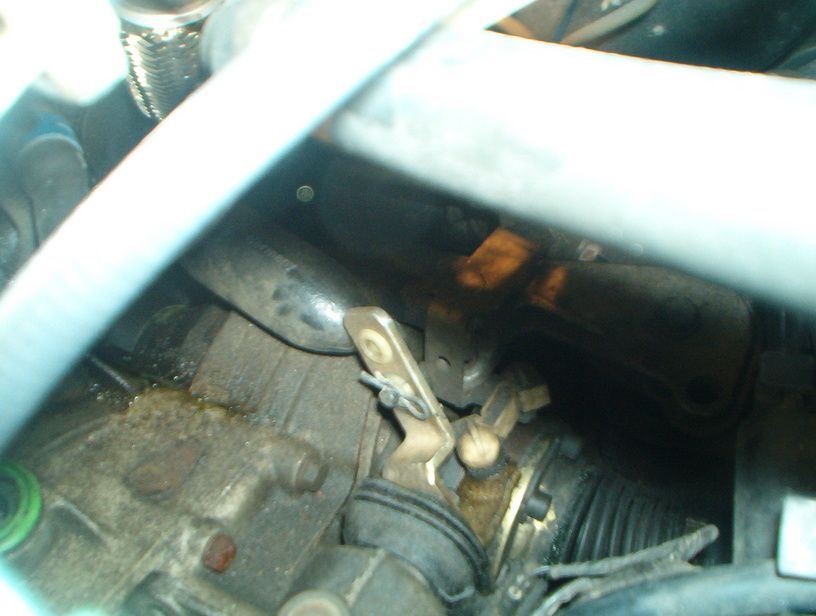

Shift linkage removal.first step remove
retaining pin for shift weight, move shift weight out of the way of
linkage.
second step remove ball joint. I used a thick flat tip screwdriver. i
put the blade under the ball joint and twisted. then i pulled up and the
piece came right off. make sure you unclip it first before prying.
finally use a 13 mm wrench to loosen the nut holding the lever on. then
sumply pull the lever off. mine came off easiest in the upright
position. 13mm nut can be seen in picture above.

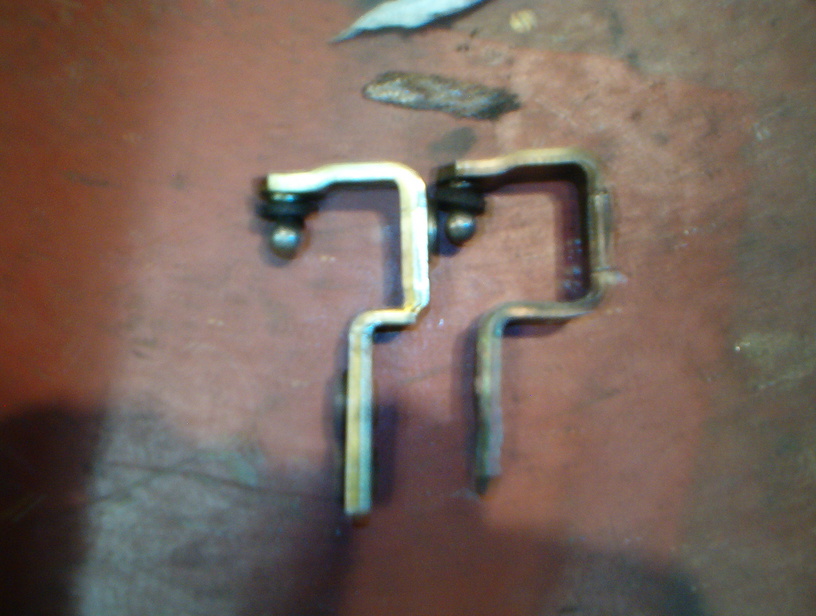

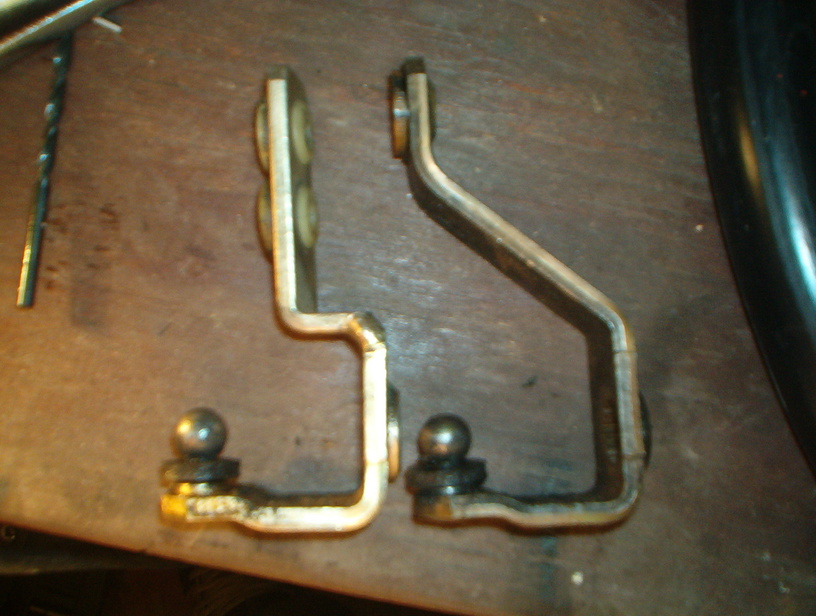

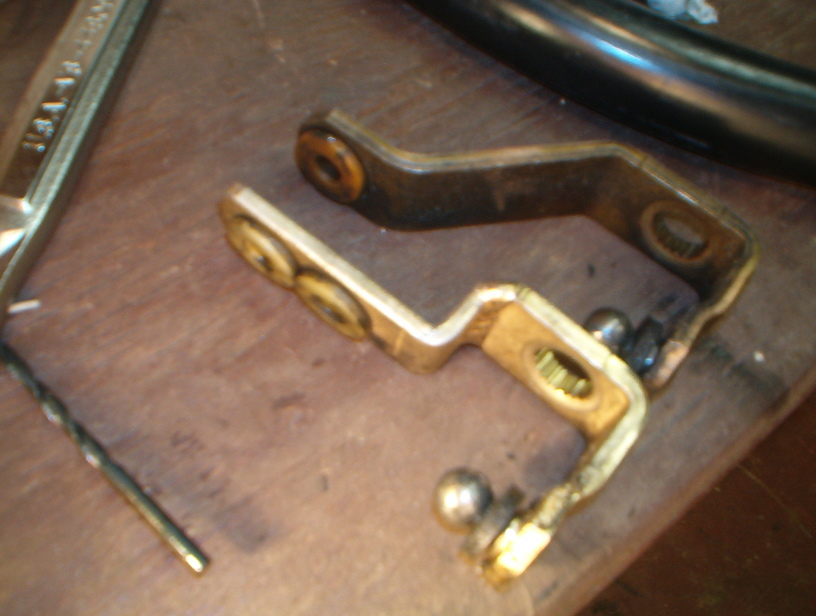

here are the two linkages in side by side position.
From first glance it is a thick piece of metal, and seems like it will
be tough to bend. therefore i will be using a torch to heat it up. it
appears that the autotech is simply a cut and modified stock piece.

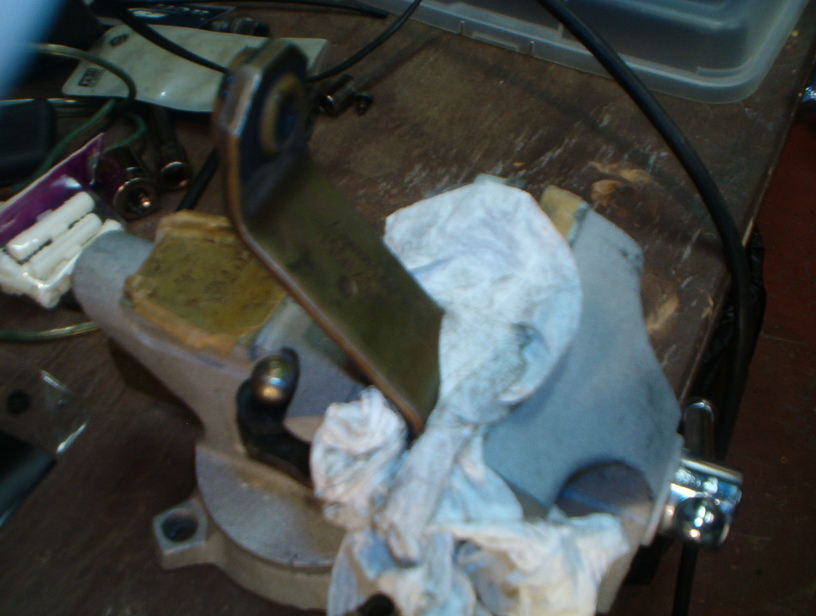

you will need to make the s bend in the piece right angles. bend the
first bend further until it is a 90.
in that picture i went slightly past 90, but it shouldnt make much of a
difference.
next bend another 90 until the part where the shift weight went into
is parallel with the b all joint.

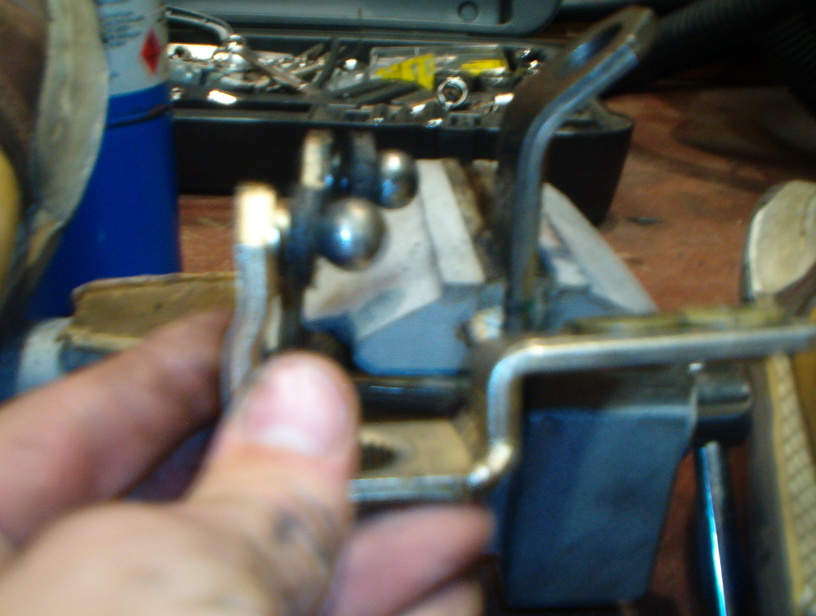

it should look like this when its done.
make sure the shift weight hole part of the lever is straight, not wavy.
now drill your hole where you want it and put back in your bushing andd
youre ready to go. i do not have the drill bit big enough to drill the
hole so i wont be able to test it today. but as it is now it is stll
probally close to a 30-35%% reduction.
there ollie happy?
EDIT: Now with Pictures for your pleasure!
97 Jetta GT 2.0T Gone.
20squared Tuning
DIY turbo
http://www.vwfixx.com/forums/i...38581
In reference to Meguiars interior quick detailer spray:
"It really brings the black out"
"Well there goes your credit score..."
|
Col2y
Member
Offline
Member Since
11-13-2005
131 posts
T.O. On
93 VW Golf 2.0L
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 4:27 AM 2-28-2006 |
|
|
good job man ... but those are some ugly ugly
welds
|
yeayeayea
Member
Offline
Member Since
5-28-2005
4156 posts
Lusby/College Park MD
1989 Gti 16v
|
|
» |
«
» 5:10 AM 2-28-2006 |
|
|
the method i shoed is one i did a while ago
modeled after the autotech short shift. the piece i modified was
originally a stock piece. modifying this piece reduces the up and down
throw. doing the piece dan did reduces up and down as well i believe,
but my method doesnt require welding for those who cant do it.
Modified by yeayeayea at 9:11 PM 2-27-2006
97 Jetta GT 2.0T Gone.
20squared Tuning
DIY turbo
http://www.vwfixx.com/forums/i...38581
In reference to Meguiars interior quick detailer spray:
"It really brings the black out"
"Well there goes your credit score..."
|
yeayeayea
Member
Offline
Member Since
5-28-2005
4156 posts
Lusby/College Park MD
1989 Gti 16v
|
|
» |
«
» 5:13 AM 2-28-2006 |
|
|
I guess one of the mods should add this to the
DIY page for the complete DIY short shift thread.
97 Jetta GT 2.0T Gone.
20squared Tuning
DIY turbo
http://www.vwfixx.com/forums/i...38581
In reference to Meguiars interior quick detailer spray:
"It really brings the black out"
"Well there goes your credit score..."
|
dirtycountry
Member
Offline
Member Since
8-18-2005
262 posts
h town MD
95vr6gti96s10zr2acklegend
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(Col2y) » |
«
» 6:08 AM 2-28-2006 |
|
|
| Quote, originally posted by Col2y » |
| good job man ... but those are some ugly ugly
welds |
yep x2
its not purple, its mulberry!
|
elmer fud
Member
Offline
Member Since
8-4-2003
1625 posts
posts dont mean anything vt
83 gti / 95 golf four door
|
|
» |
«
» 6:22 AM 2-28-2006 |
|
|
did these to my MK1 and worked well also, for
those of you with other gen cars.
(\__/) SORRY I SUCK AT SPELLING
(>'.'<)
GREAT DIY's
(")_(")
http://www.dubsnorth.ORG
ƒat Rabbits Member#11
|
yeayeayea
Member
Offline
Member Since
5-28-2005
4156 posts
Lusby/College Park MD
1989 Gti 16v
|
|
» |
«
» 6:48 AM 2-28-2006 |
|
|
yep, mk1-2-3 shift linkage is very very similar.
mk3s have the shift weight, among other minor changes. but these mods
should work for all 3 makes.
97 Jetta GT 2.0T Gone.
20squared Tuning
DIY turbo
http://www.vwfixx.com/forums/i...38581
In reference to Meguiars interior quick detailer spray:
"It really brings the black out"
"Well there goes your credit score..."
|
Dubz Minus 3
Member
Offline
Member Since
3-30-2004
2125 posts
Elmira NY
'95 Jetta 2.0, '74 Beetle
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(Franco...) » |
«
» 6:54 AM 2-28-2006 |
|
|
Modified by Dubz Minus 3 at 4:19 PM 6-25-2006
2.
space
| Quote, originally posted by uscfan » |
| The car is fine, it was too dark to get pix of the
owl. Actually I didn't even think of getting pics of the owl why
would I want pics of a dead smooshed owl? |
|
yeayeayea
Member
Offline
Member Since
5-28-2005
4156 posts
Lusby/College Park MD
1989 Gti 16v
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dubz
Minus 3) » |
«
» 6:55 AM 2-28-2006 |
|
|
| Quote, originally posted by Dubz Minus 3 » |
| i dont understand why this is "hillbilly"? just
because he didnt buy it from a company and made it himself and it
works? Duct tape and wooden truck beds are hillbilly |
maybe because in all of dans pictures he titled them the hillbilly
short shifter. calm down dude.
97 Jetta GT 2.0T Gone.
20squared Tuning
DIY turbo
http://www.vwfixx.com/forums/i...38581
In reference to Meguiars interior quick detailer spray:
"It really brings the black out"
"Well there goes your credit score..."
|
Dubz Minus 3
Member
Offline
Member Since
3-30-2004
2125 posts
Elmira NY
'95 Jetta 2.0, '74 Beetle
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (yeayeayea) » |
«
» 7:03 AM 2-28-2006 |
|
|
lmao i didnt notice that lol my bad
2.
space
| Quote, originally posted by uscfan » |
| The car is fine, it was too dark to get pix of the
owl. Actually I didn't even think of getting pics of the owl why
would I want pics of a dead smooshed owl? |
|
paulzeee
Member
Offline
Member Since
12-24-2005
493 posts
south maplewood mn
97 GTI vr6
|
|
» |
«
» 7:03 AM 2-28-2006 |
|
|
| Quote, originally posted by reynolds9000 » |
| Sorry for being the layman, but what is different
about it aside from being cut and welded.. What, in the design,
reduces the throw. |
i wont apologize for this but...you are telling me after razing me about
not SEARCHING!!! (which i did btw) for a post about short shift vs. cut
shift that you couldnt find the answer to this by SEARCHING!?
...i laugh at you *******s that take your lame 5 seconds to type a
moronic post just to remind someone to SEARCH!!...well maybe they have
and just want to piss people off, or make people like you waste those oh
so 5 seconds of time to post a useless post...idiot.
Thank you for not ****ing me big time.
|
yeayeayea
Member
Offline
Member Since
5-28-2005
4156 posts
Lusby/College Park MD
1989 Gti 16v
|
|
» |
«
» 7:06 AM 2-28-2006 |
|
|
wow.
anyway, the longer that rod is, the less degrees of rotation at the
pivot point are needed to make the dame displacement at the end of the
rod. this in turn requires less movement of the shift rod to get the
same displacement on this modified rod. the drawback is that the
resistance in shifting in the transmission is increased with the
lengthening of the rod. the longer rod allows the same force to apply a
stronger moment on the pivot point, which is transferred to the shifter.
but dont worry, its not much and is easily adapted to.
97 Jetta GT 2.0T Gone.
20squared Tuning
DIY turbo
http://www.vwfixx.com/forums/i...38581
In reference to Meguiars interior quick detailer spray:
"It really brings the black out"
"Well there goes your credit score..."
|
Dan J Reed
Member
Offline
Member Since
7-26-2004
8990 posts
Stinkville NJ
95 Golf Sport, 1987 VW Vanagon, 98 Jetta GLS
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does...
(-DOOMED-) » |
«
» 1:53 PM 2-28-2006 |
|
|
| Quote, originally posted by -DOOMED- » |
| it wont work.
|
Quiet you.
95' Golf Sport "Schneesturm", 87' Westy Vanagon "Schultz" - 98' Jetta
GLS "Wife's Car"
BUY MY $60 14" (4) WINTER BEATER TIRES! -
BUY MY OEM MUD FLAPS! -
CHEAP OEM MKIII REMOTES!
|
gti_r_done
Member
Offline
Member Since
10-7-2004
3323 posts
OH
Member #173007
|
|
Re:
Unless you try it, don't tell me it can't work, cuz it does... (Dan
J Reed) » |
«
» 1:58 PM 2-28-2006 |
|
|
maybe you could make a diagram showing how this
shortens throw
|VR
SECHS|
If your spinnin' rims spin counter-clockwise...you are not pimpin'
|
